Centrifugal Gravity Separators

Download information

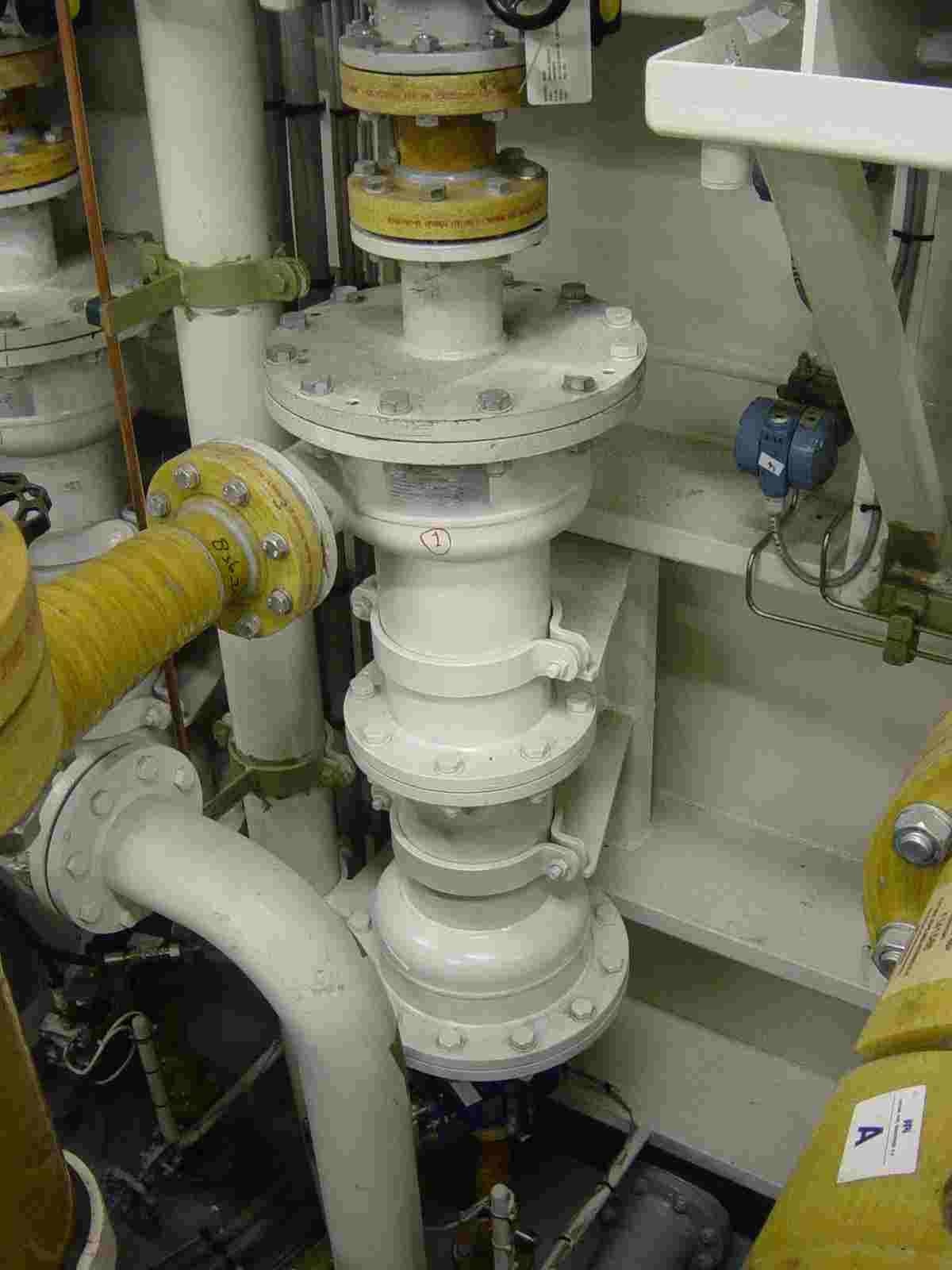

SEPFIL's Centrifugal Gravity Separators are solids removal devices which rely on centrifugal force and the specific gravity of solids for efficient operation. The part-size and the difference in specific weight between liquid and the solids prescribe the efficiency of the separator.

The tangential inlet and the special spinfex construction in the top dome of the separator guarantee the optimal centrifugal action, required to achieve efficient and continuous separation. Circulation or a setup in series of two separators will increase the effectiveness with 30 to 45 percent

• Function: Liquid–Solids separation
• Capacities: 0,6 – 2.000 m³/hour
• Connection sizes: DN 10 – DN 450
• Filter fineness: not absolute
• Overall length: 419 – 4470 mm
• Setup: in-line or bypass
• Operating pressure: standard 1 – 10 bar
• Pressure loss: 0,2 – 0,8 bar
• Moving parts: no
